KGN32
- Cylindrical grinding machine
- PLAIN TYPE : KGN32(cylinder)
- UNIVERSAL TYPE : KGN32U(cylinder and section)
- Convenient operation
- Automatic grindstone correction and grindstone wear compensation
- Free programming by fixed cycle
- Suitable for mass production lines
- Easy correction of grindstone
- Easy replacement of grindstone by crane (optional)
- High precision
- Wheel head : Hydrostatic bearing (Hybrid Type)
- Sideway : Oil lubricated slides by automatic pressure control.
- Automatic measuring device for grindstone compensation.
- Automatic section positioning gauge (optional)
- High reliability
- Stable and precise grinding
- Minimize thermal displacement of bed and wheel head
- High speed 32 bit micro process.

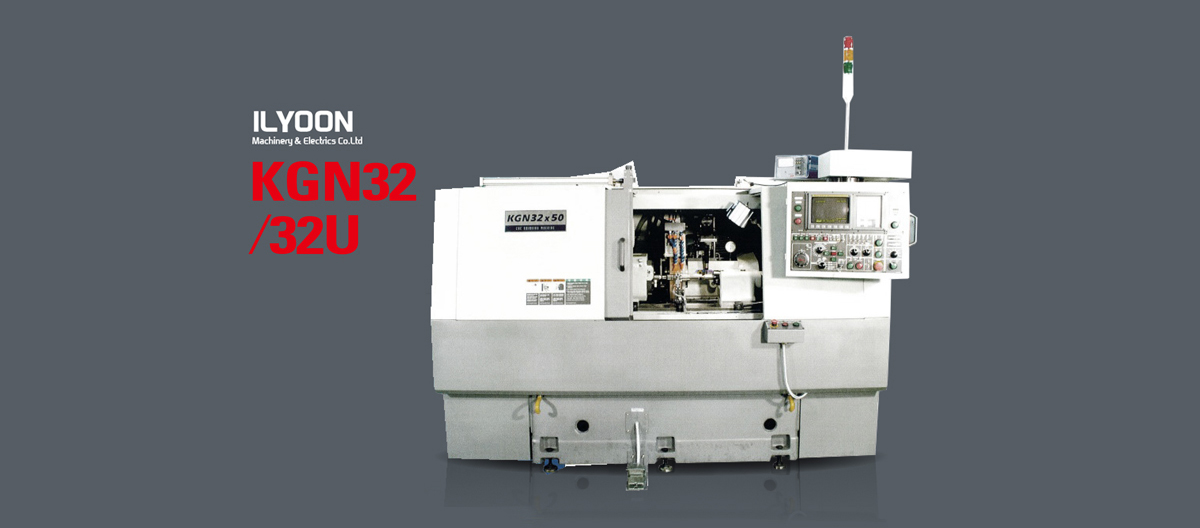

External view of the machine
- Easy grinding by automatic grindstone correction
- Easy operation by automatic grindstone correction
- Long period of grinding with table precision is possible as there is no contact between the spindle and bearing by fluid lubrication.
- Optimized work environment
- The attached fully closed type guard prevents the splash of grinding oil and keep the work environment clean.
- The door is interlocked with the cycle hence is automatically opened and closed. (Optional)
- Automatic splashing grinding oil collector (optional)
- Automatic fluid lubrication system
- It maintain high speed and smooth slideding on the surface of table and wheel head by the application of a fluid lubrication system using SKEM bearing principles.
- Electromagnetic chip separator and grinding oil tank/paper filter (optional)
- The electromagnetic chip separator in the grinding oil tank is standard facility.
- The capacity of separator is 40ℓ/min.
- Hydraulic oil temperature control system to minimize thermal deformation (optional)
- Separated hydraulic oil tank
The effect of machine vibration and thermal deformation were minimized by separating the hydraulic and grinding oil tanks from the main body of the machine. - Thermal deformation is minimize by attaching an oil cooling device on the lubrication channel of the grindstone spindle.
- Infinite variable speed head stock
- Speed control type head stock by NC program
- Composite head stock with possible centering and chucking works
